Create a Stopwatch with JavaScript DOM: Start, Stop, Reset Explained

I am going to explain how to make a stopwatch using the DOM. I am focusing on the JavaScript part – the main functionality – and I will explain the HTML and CSS briefly.

HTML and CSS for the JavaScript DOM Stopwatch

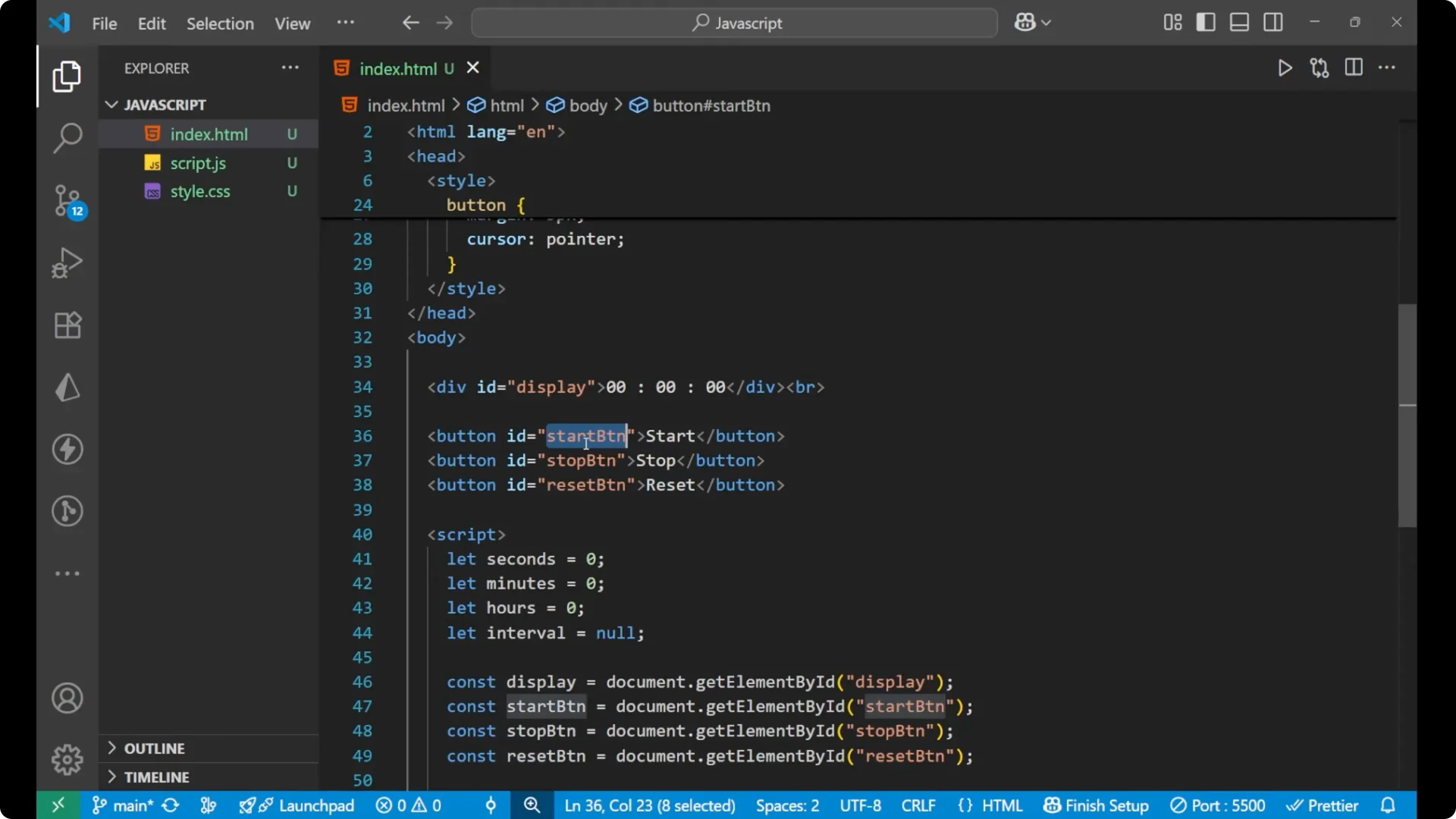

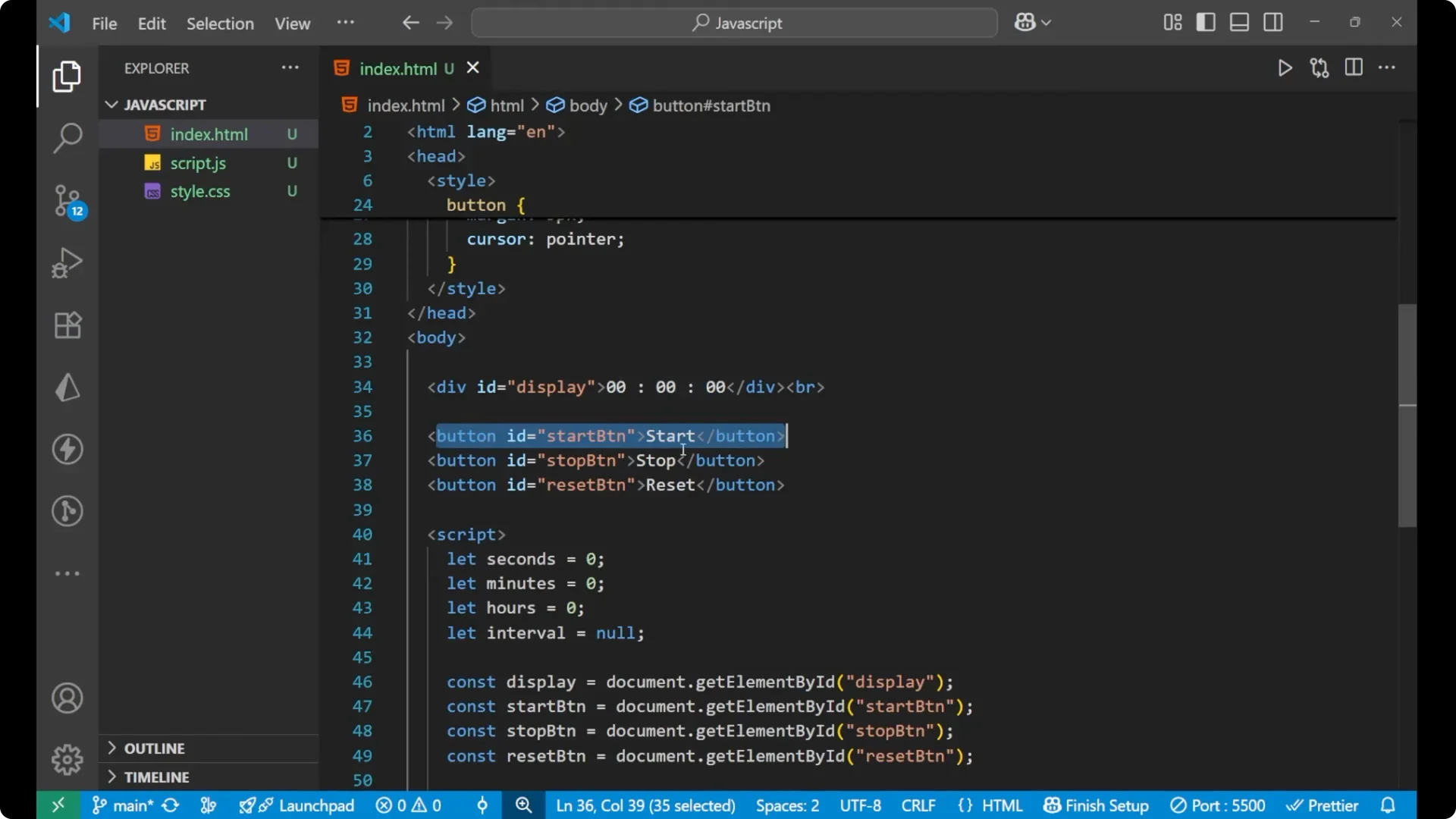

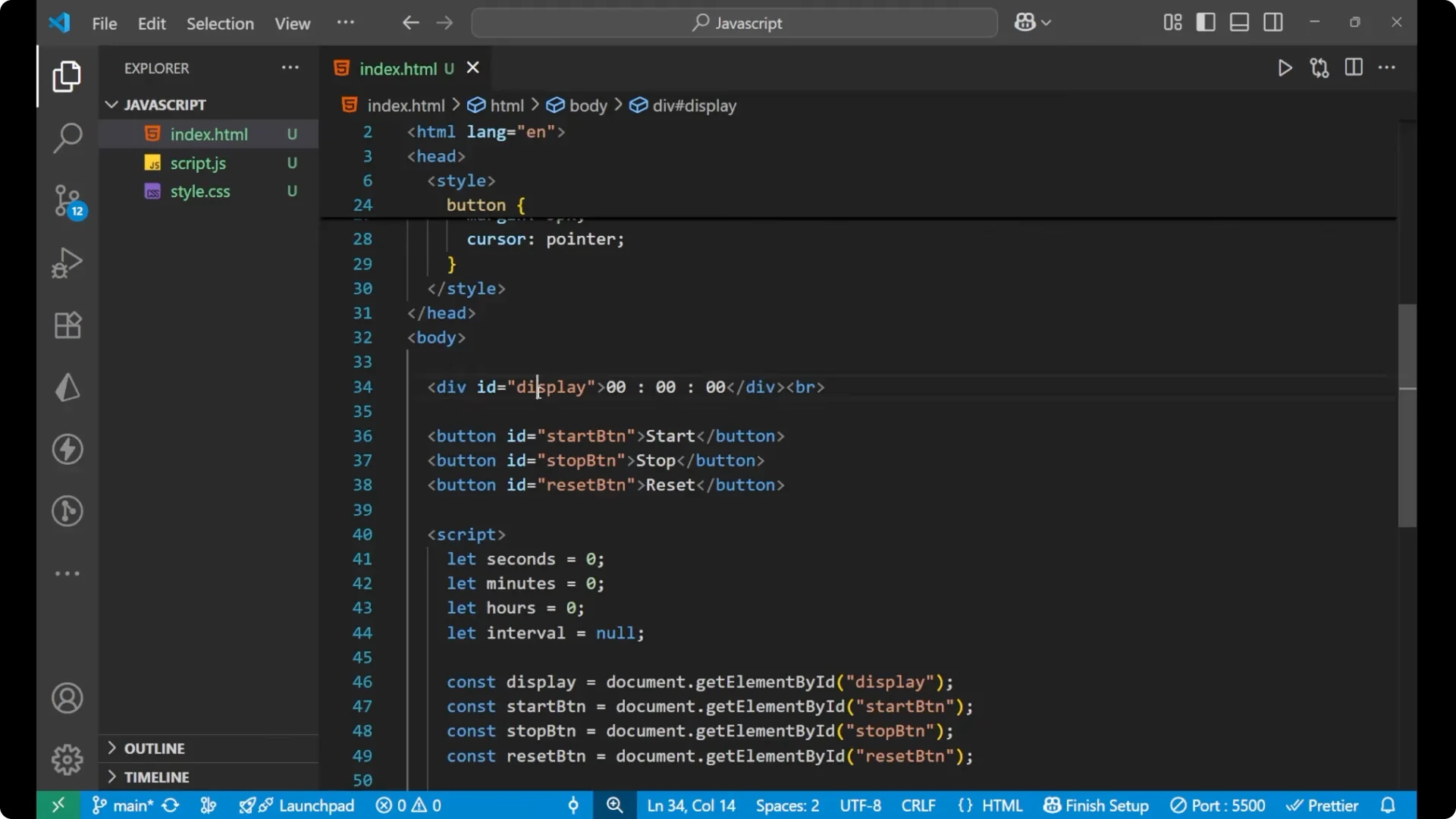

HTML structure:

• A display div that shows the timer.
• Three buttons – Start, Stop, and Reset.





<div id="display">00:00:00</div>

<button id="start-btn">Start</button>
<button id="stop-btn">Stop</button>
<button id="reset-btn">Reset</button>

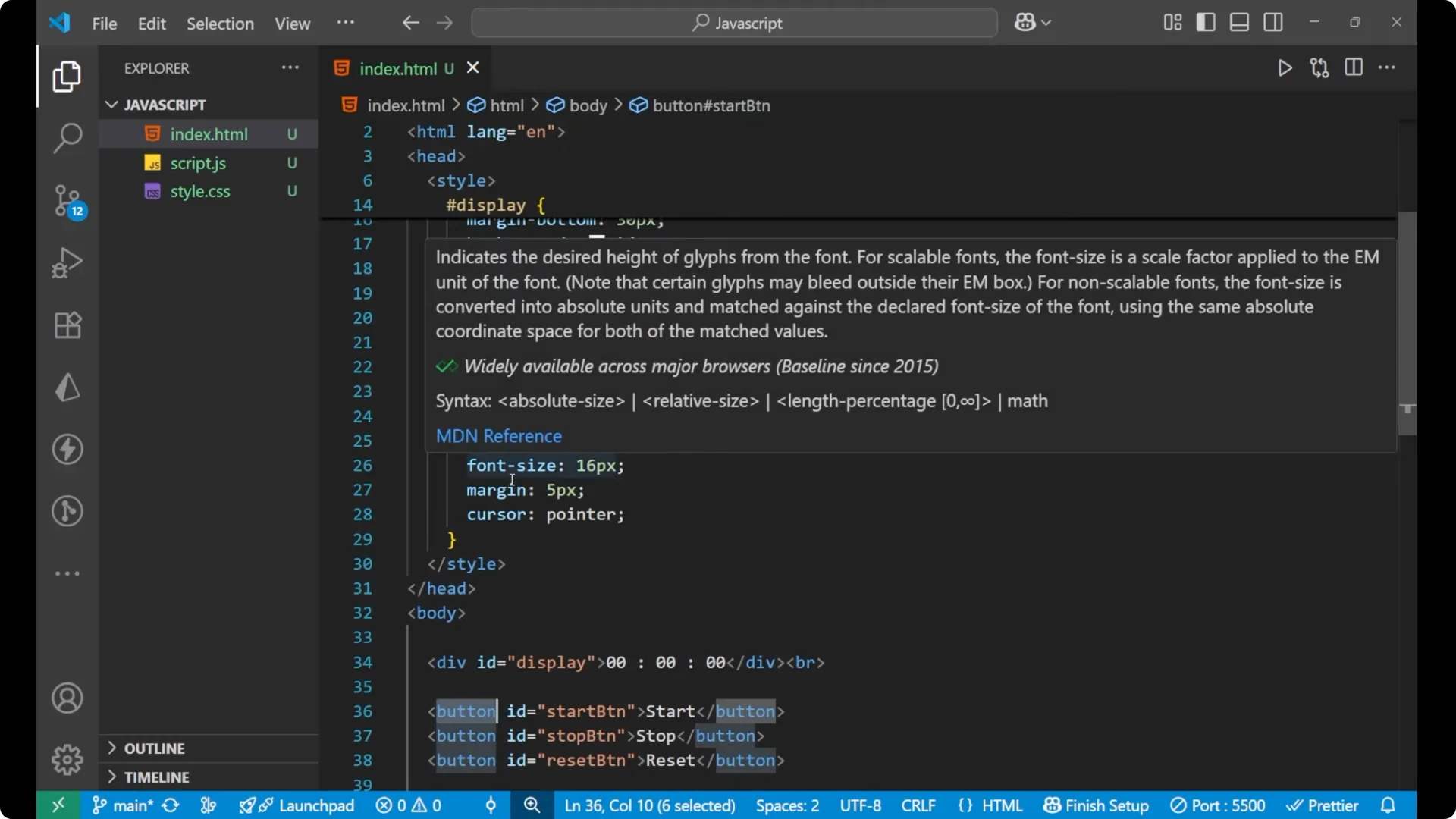

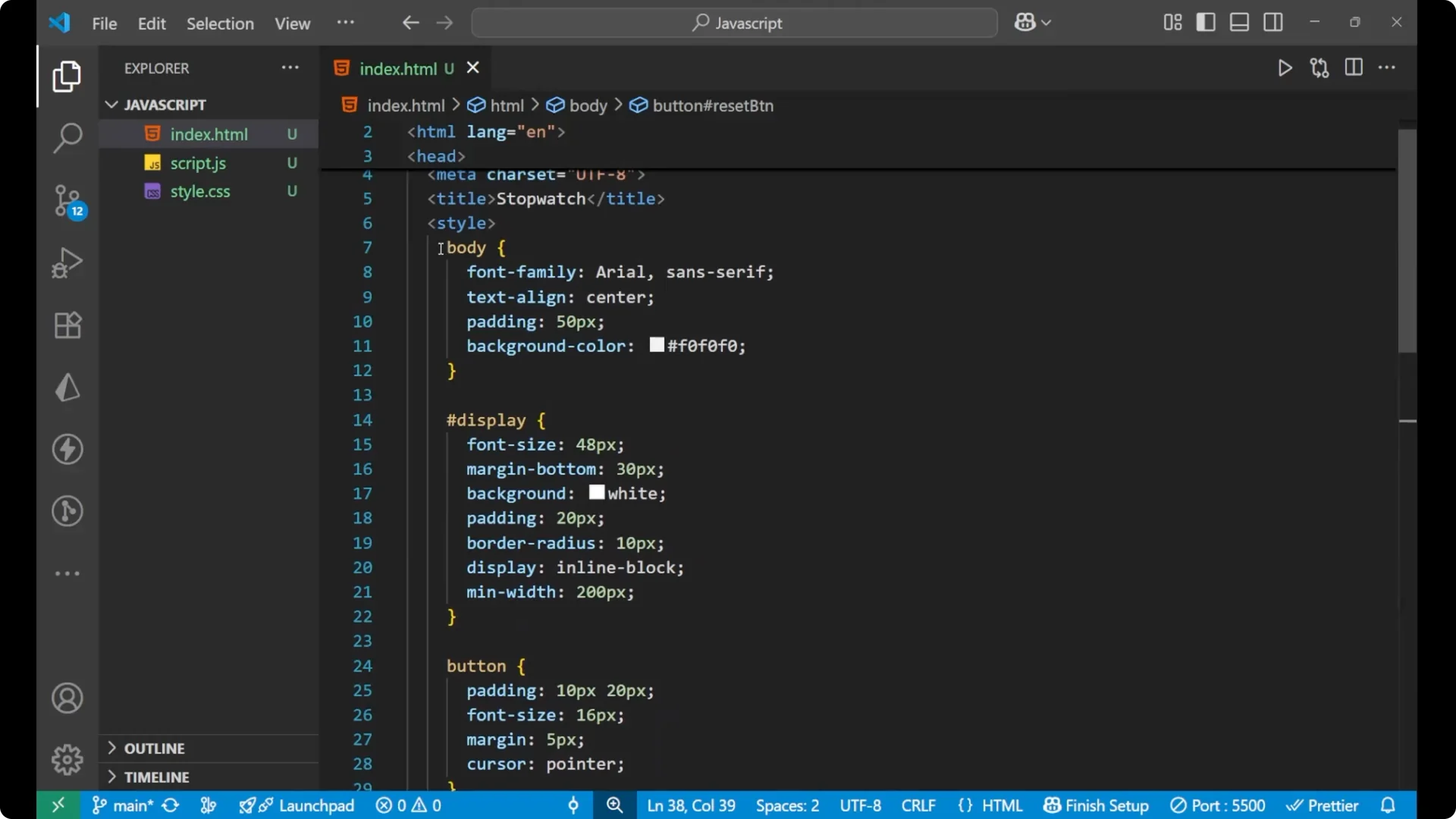

Basic CSS:

• Body: font family, centered text, padding, and a background.
• Display: large font size, bottom margin of 30px, background, padding, border-radius, inline-block, and a minimum width of 200px.
• Buttons: padding 10px 20px, font size, margin, and cursor as pointer.





body {
  font-family: sans-serif;
  text-align: center;
  padding: 40px;
  background: #f5f5f5;
}


#display {
  font-size: 48px;
  margin-bottom: 30px;
  background: #fff;
  padding: 20px 30px;
  border-radius: 8px;
  display: inline-block;
  min-width: 200px;
}

button {
  padding: 10px 20px;
  font-size: 16px;
  margin: 0 8px;
  cursor: pointer;
}





JavaScript DOM Stopwatch – Variables and Element References

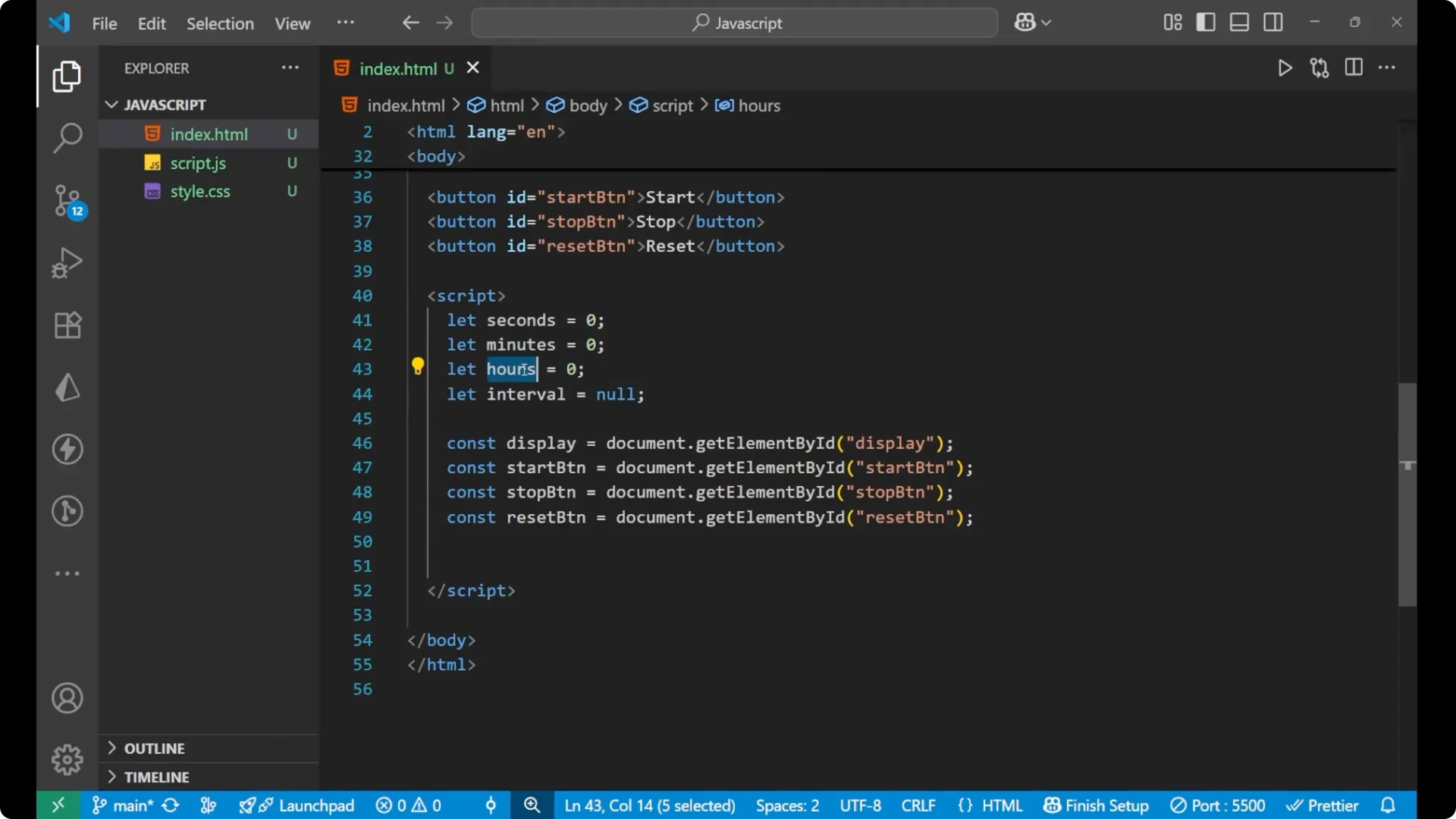

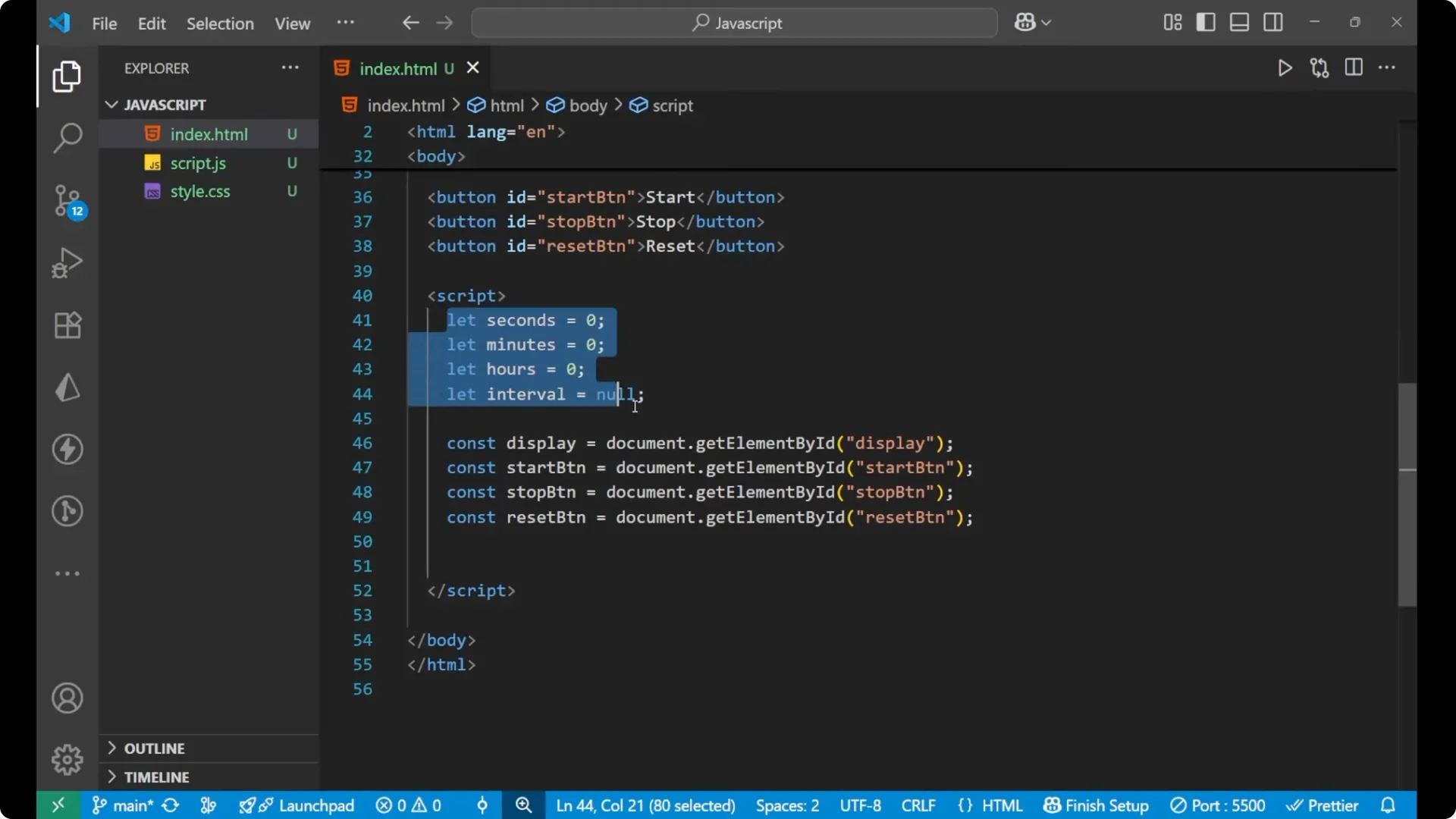

I am using four variables:

• seconds = 0
• minutes = 0
• hours = 0
• interval = null

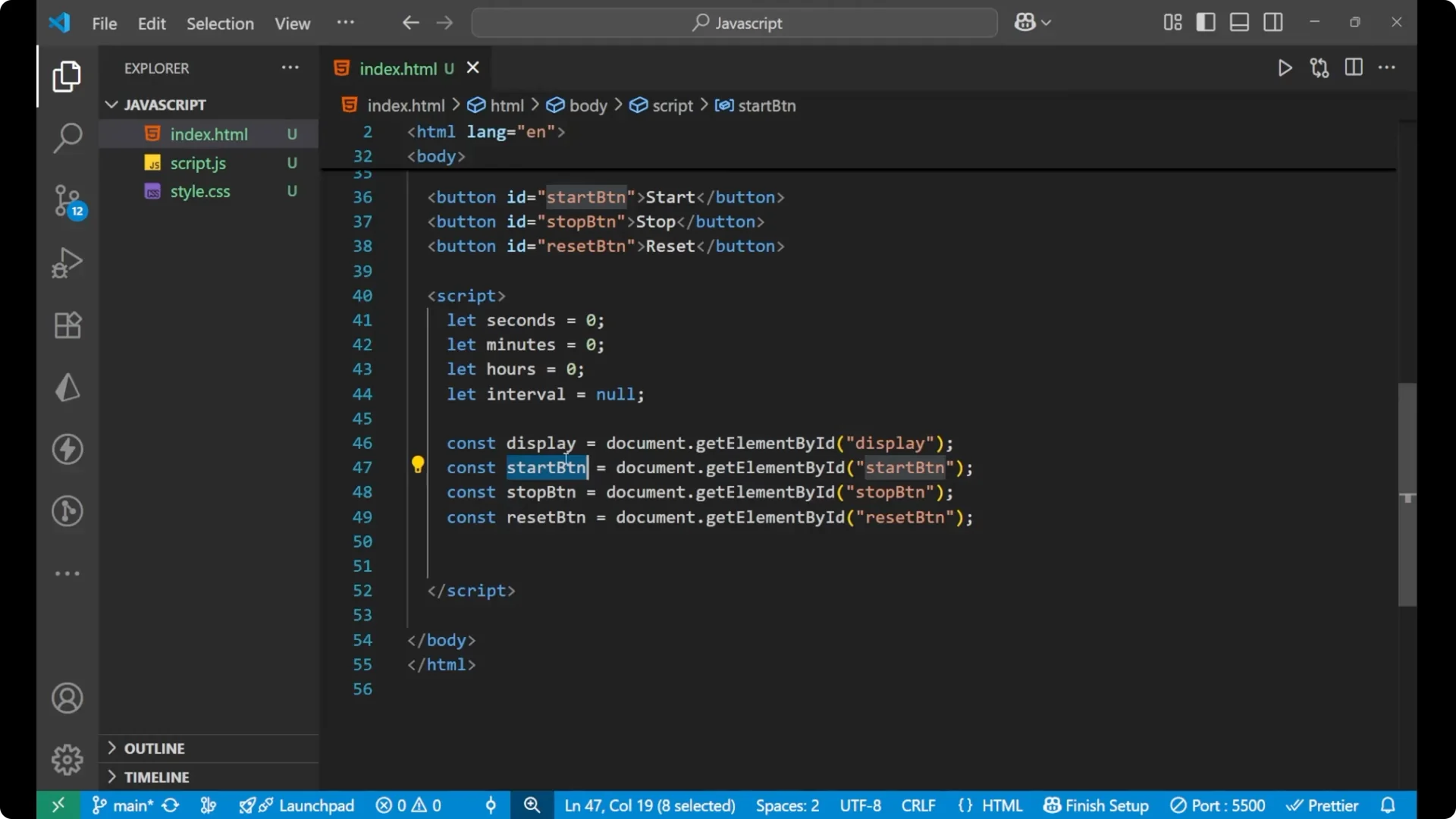

I also grab the display and the three buttons using getElementById.



let seconds = 0;
let minutes = 0;
let hours = 0;
let interval = null;

const display = document.getElementById('display');
const startBtn = document.getElementById('start-btn');
const stopBtn = document.getElementById('stop-btn');
const resetBtn = document.getElementById('reset-btn');

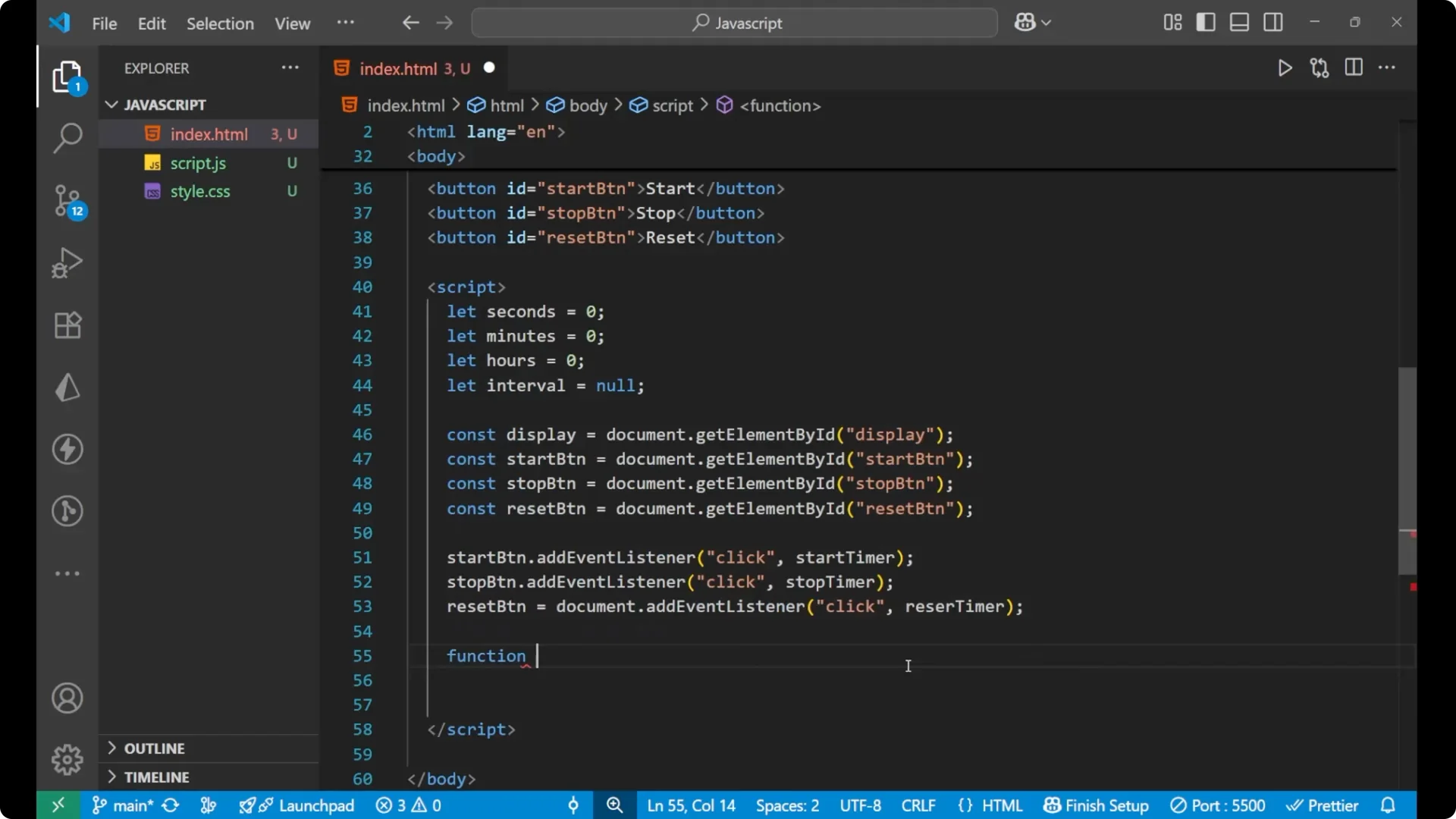

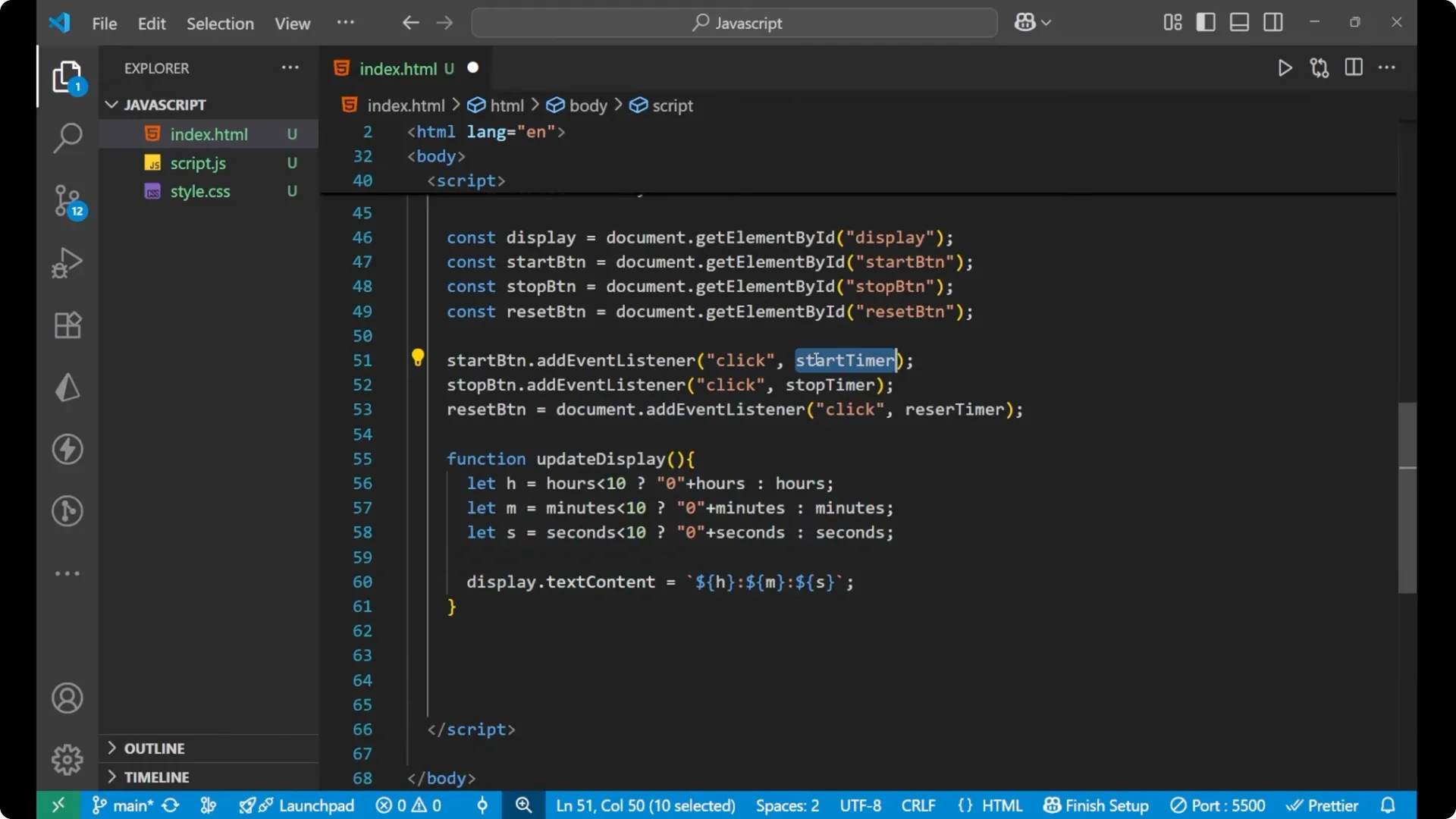

Wire Up the Buttons for the JavaScript DOM Stopwatch

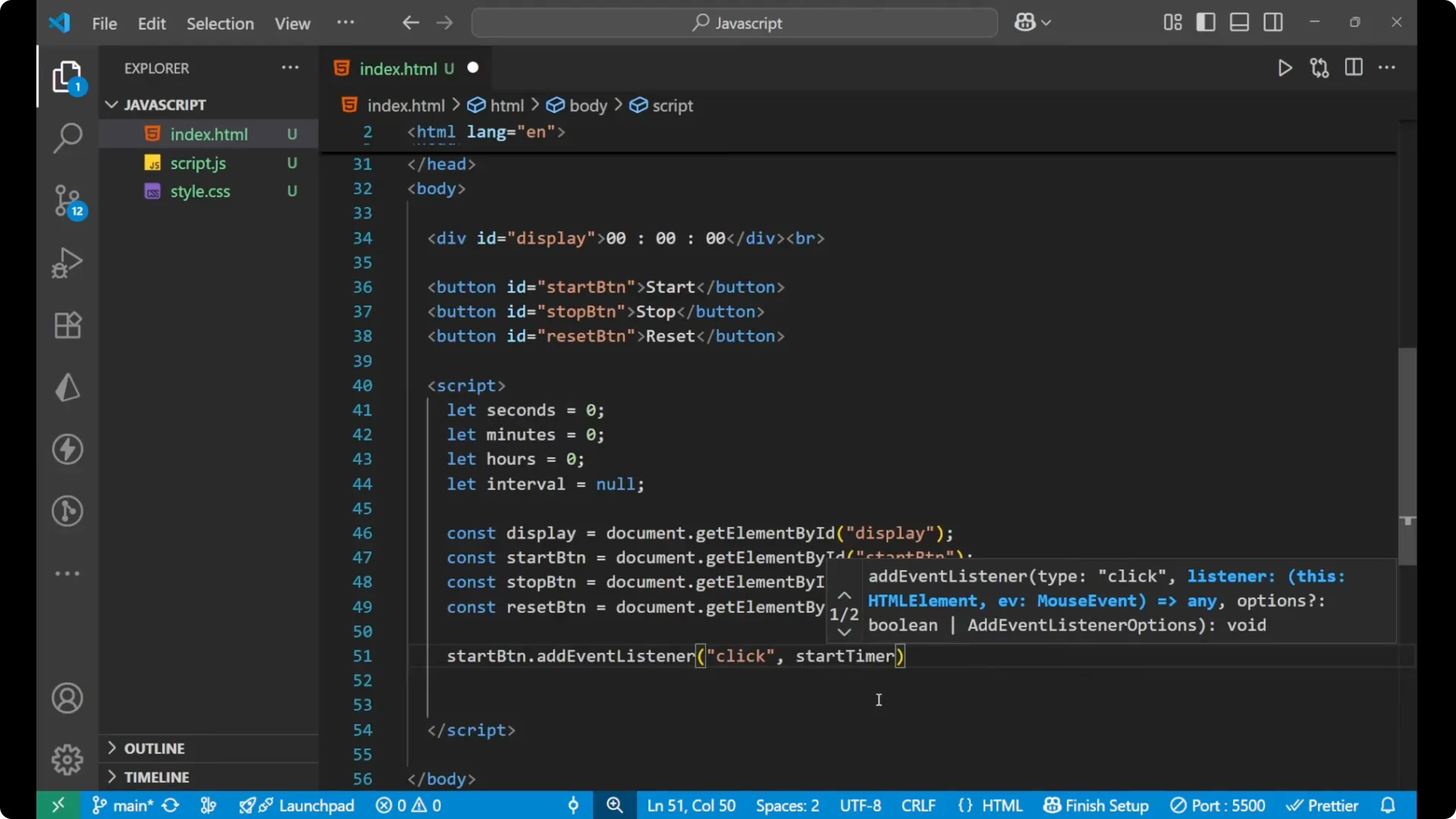

Before writing the functions, I attach click event listeners to the buttons and call functions named startTime, stopTime, and resetTime.



startBtn.addEventListener('click', startTime);
stopBtn.addEventListener('click', stopTime);
resetBtn.addEventListener('click', resetTime);

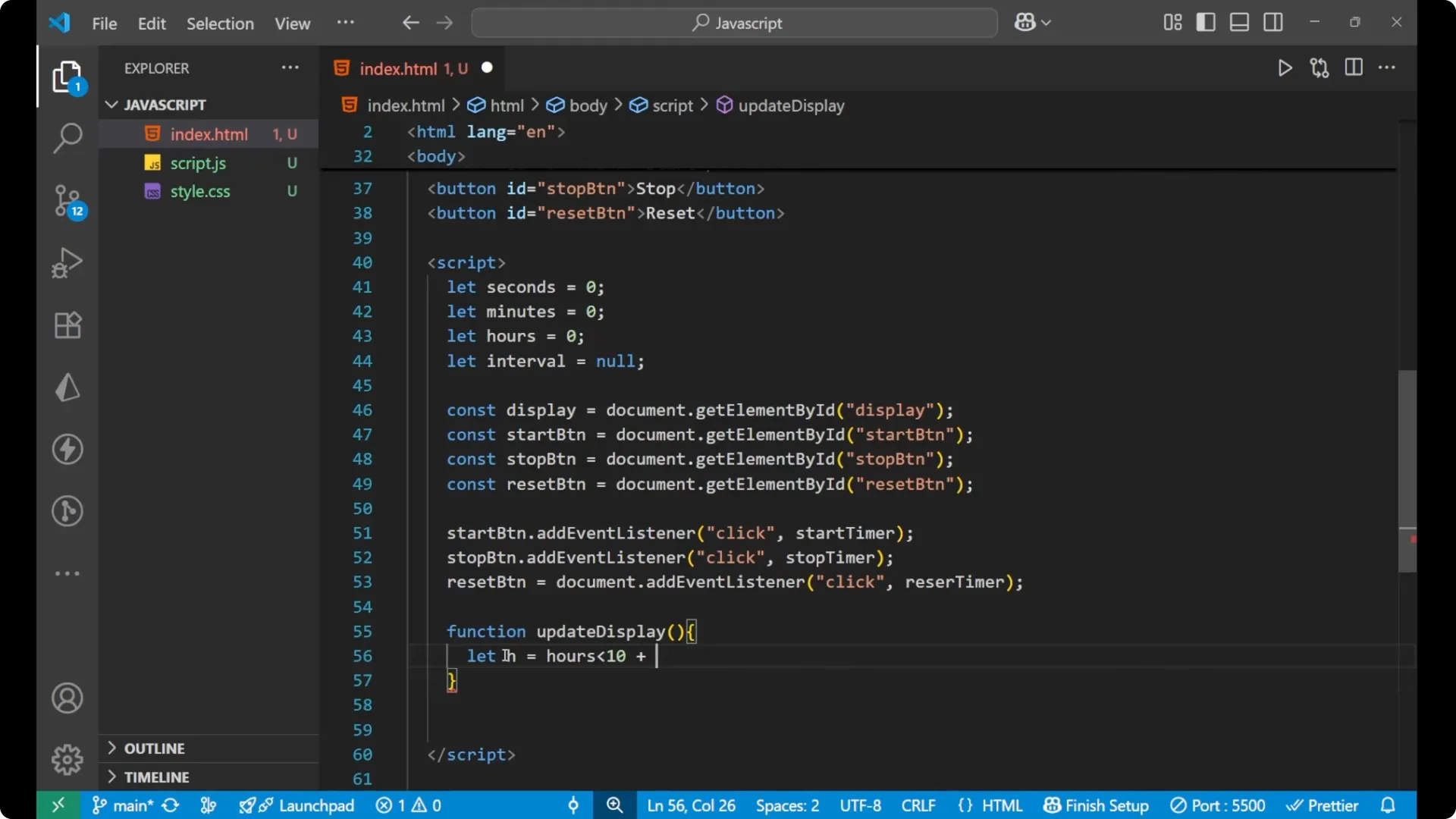

Update the Display

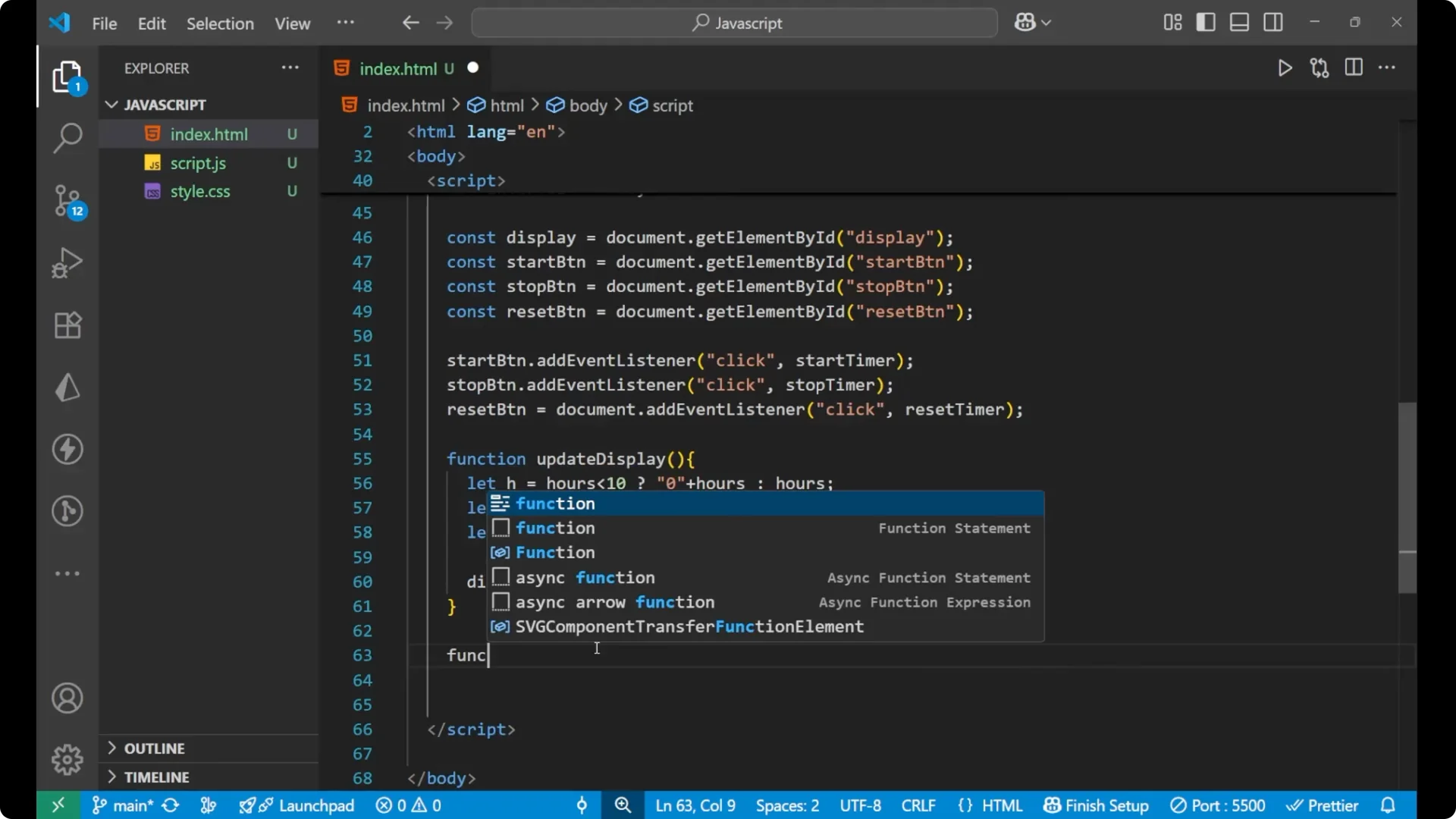

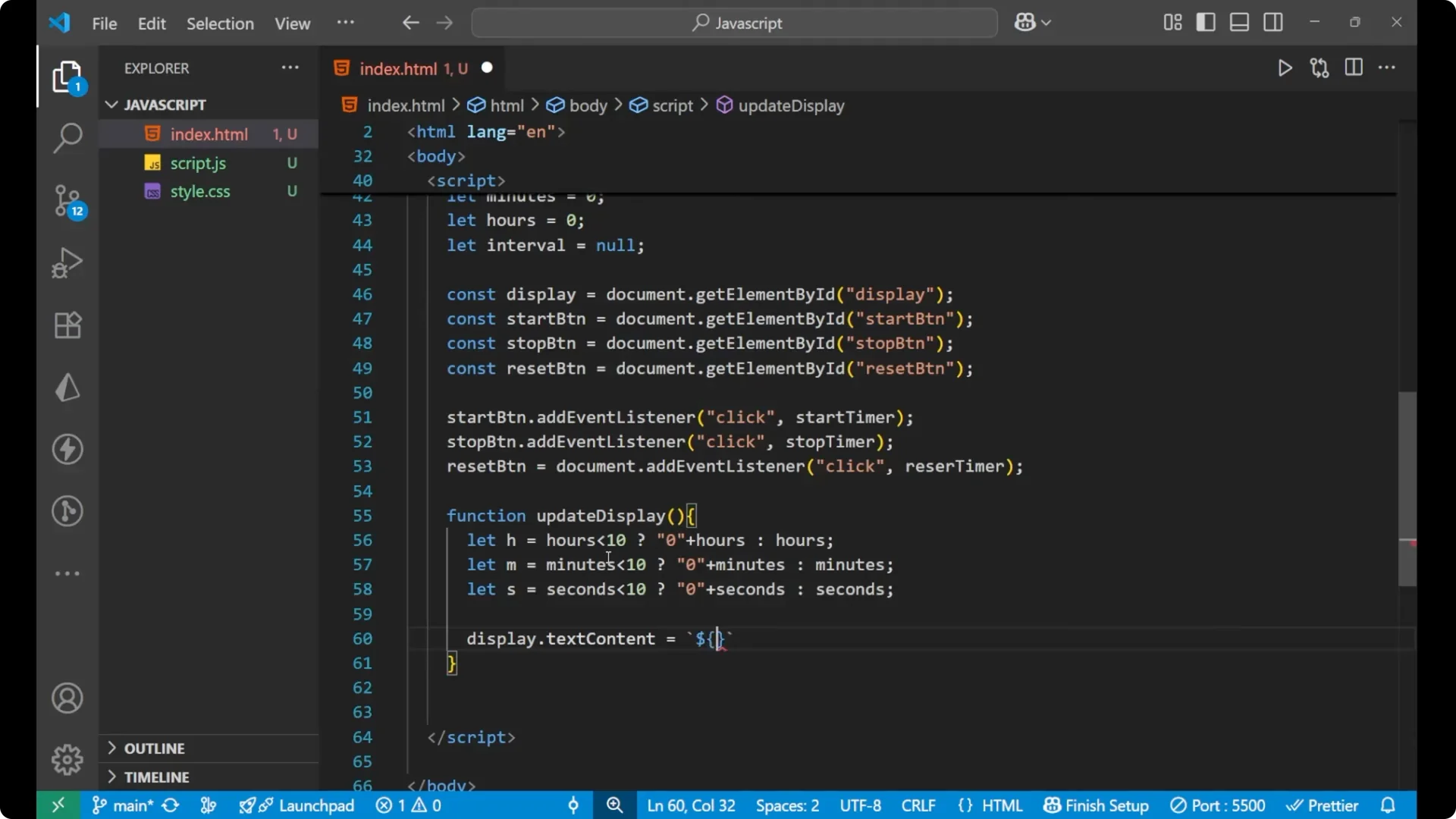

I create an updateDisplay function that pads hours, minutes, and seconds with a leading zero when they are less than 10. The display uses textContent with a template literal in the format HH:MM:SS.





function updateDisplay() {
  const h = hours < 10 ? '0' + hours : String(hours);
  const m = minutes < 10 ? '0' + minutes : String(minutes);
  const s = seconds < 10 ? '0' + seconds : String(seconds);

  display.textContent = `${h}:${m}:${s}`;
}





Core Functions – Start, Stop, and Reset

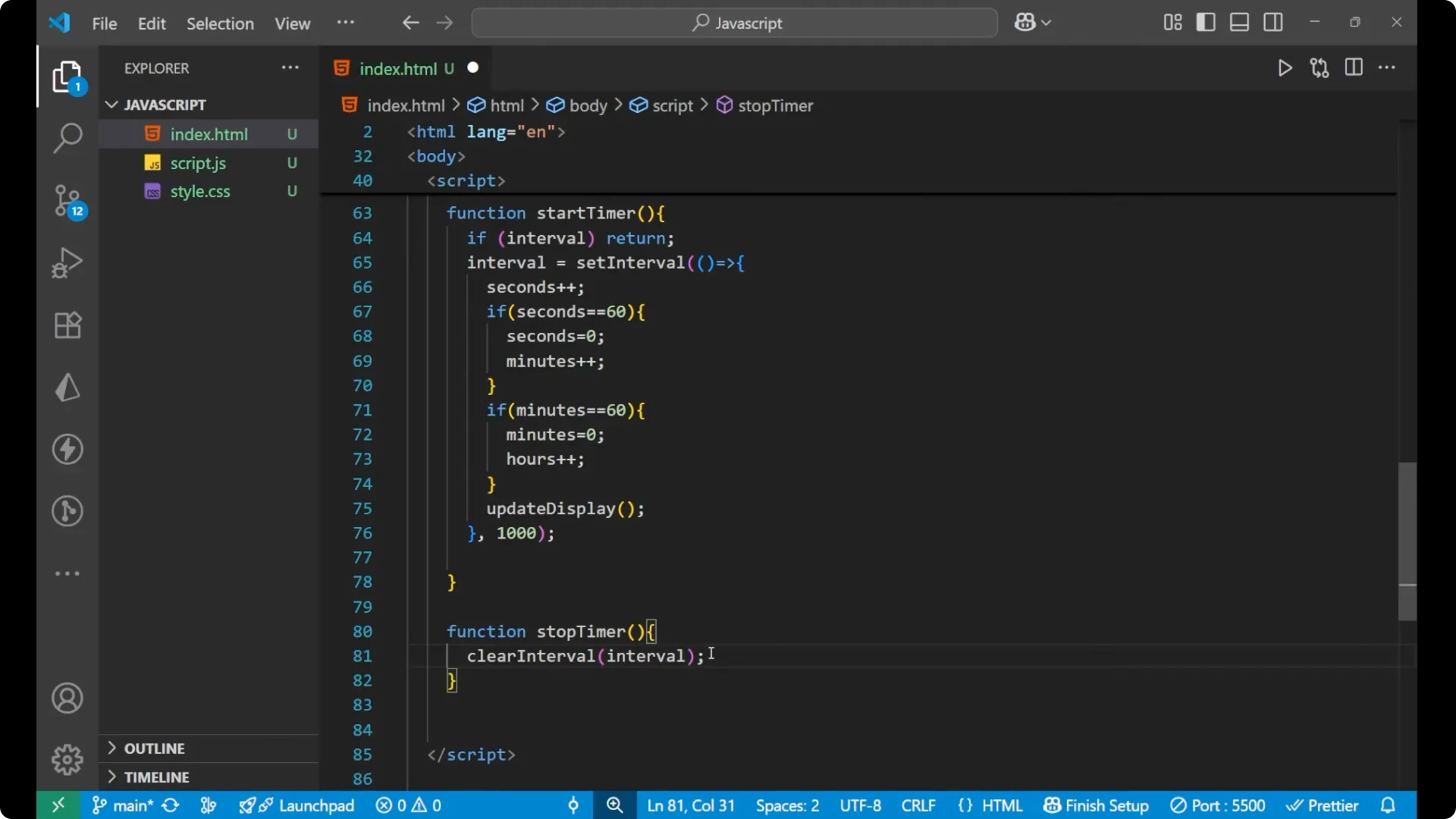

Start the timer

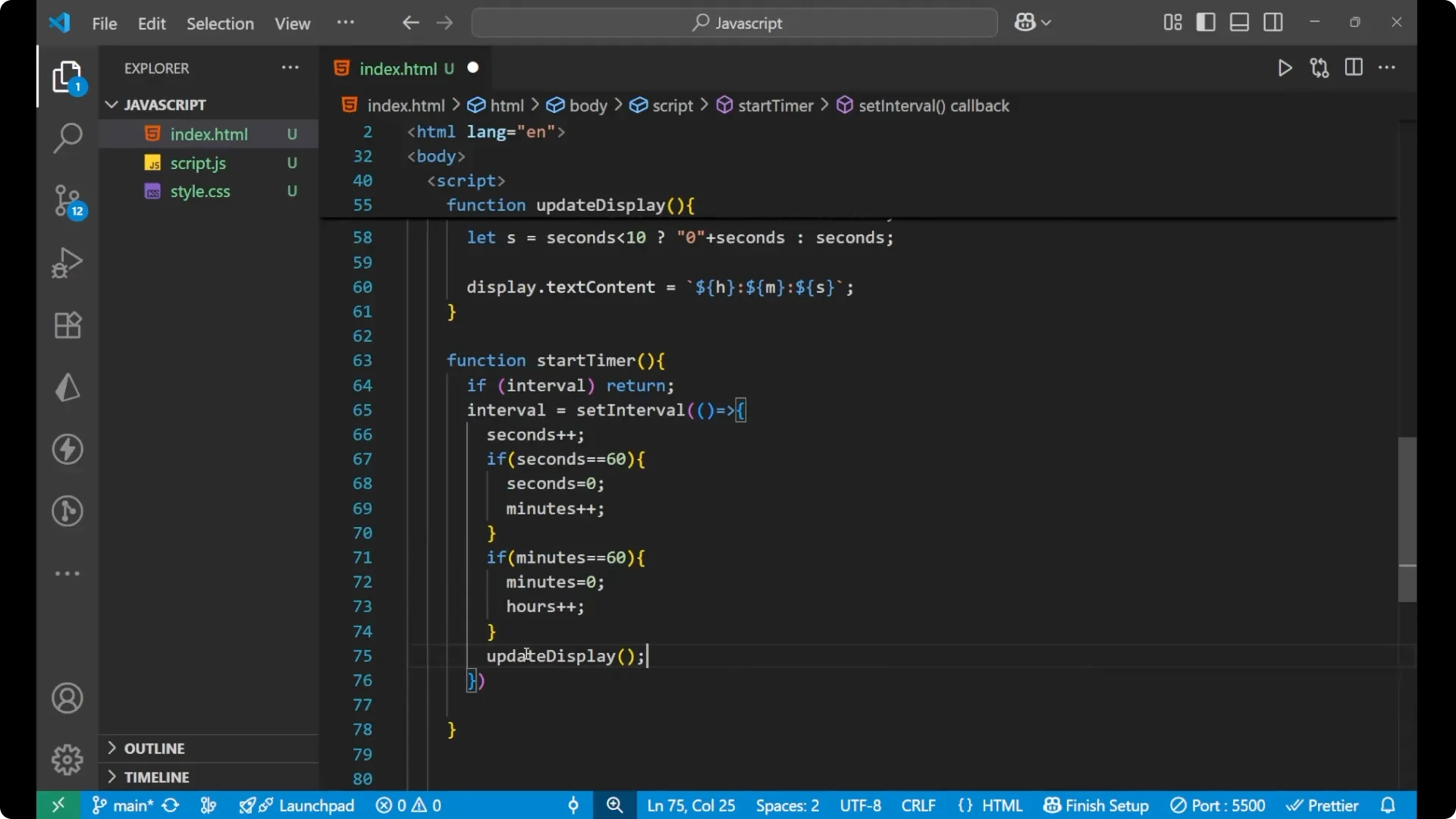

I prevent multiple intervals by returning early if interval already exists. Then I use setInterval to increment seconds every 1000 milliseconds. When seconds reach 60, I reset seconds to 0 and increment minutes. When minutes reach 60, I reset minutes to 0 and increment hours. After updating values, I call updateDisplay.





function startTime() {
  if (interval) return; // prevent multiple intervals
  interval = setInterval(() => {
    seconds++;

    if (seconds === 60) {
      seconds = 0;
      minutes++;
    }

    if (minutes === 60) {
      minutes = 0;
      hours++;
    }

    updateDisplay();
  }, 1000);
}





Stop the timer

I clear the interval and set interval back to null.

function stopTime() {
  clearInterval(interval);
  interval = null;
}

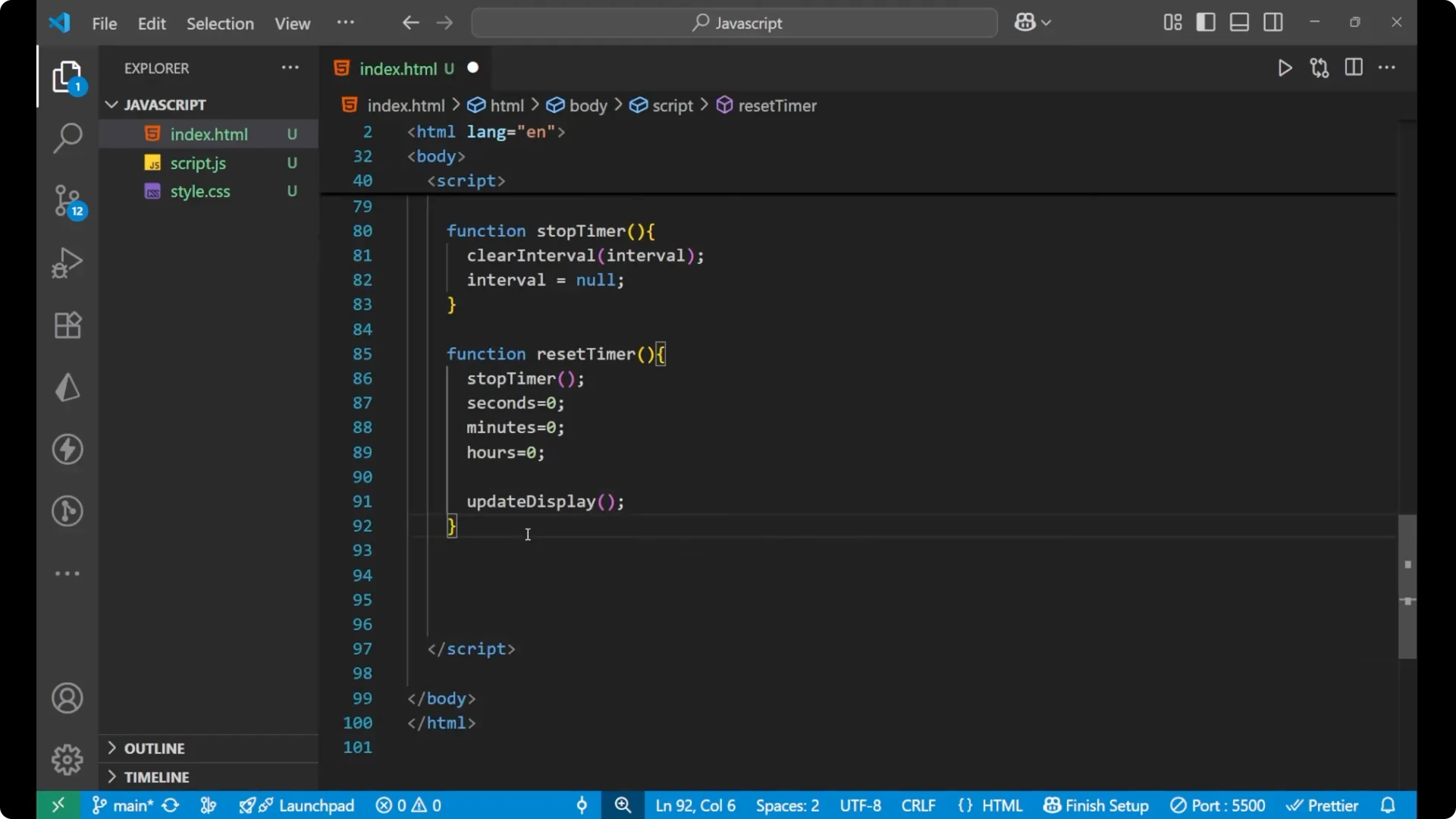

Reset the timer

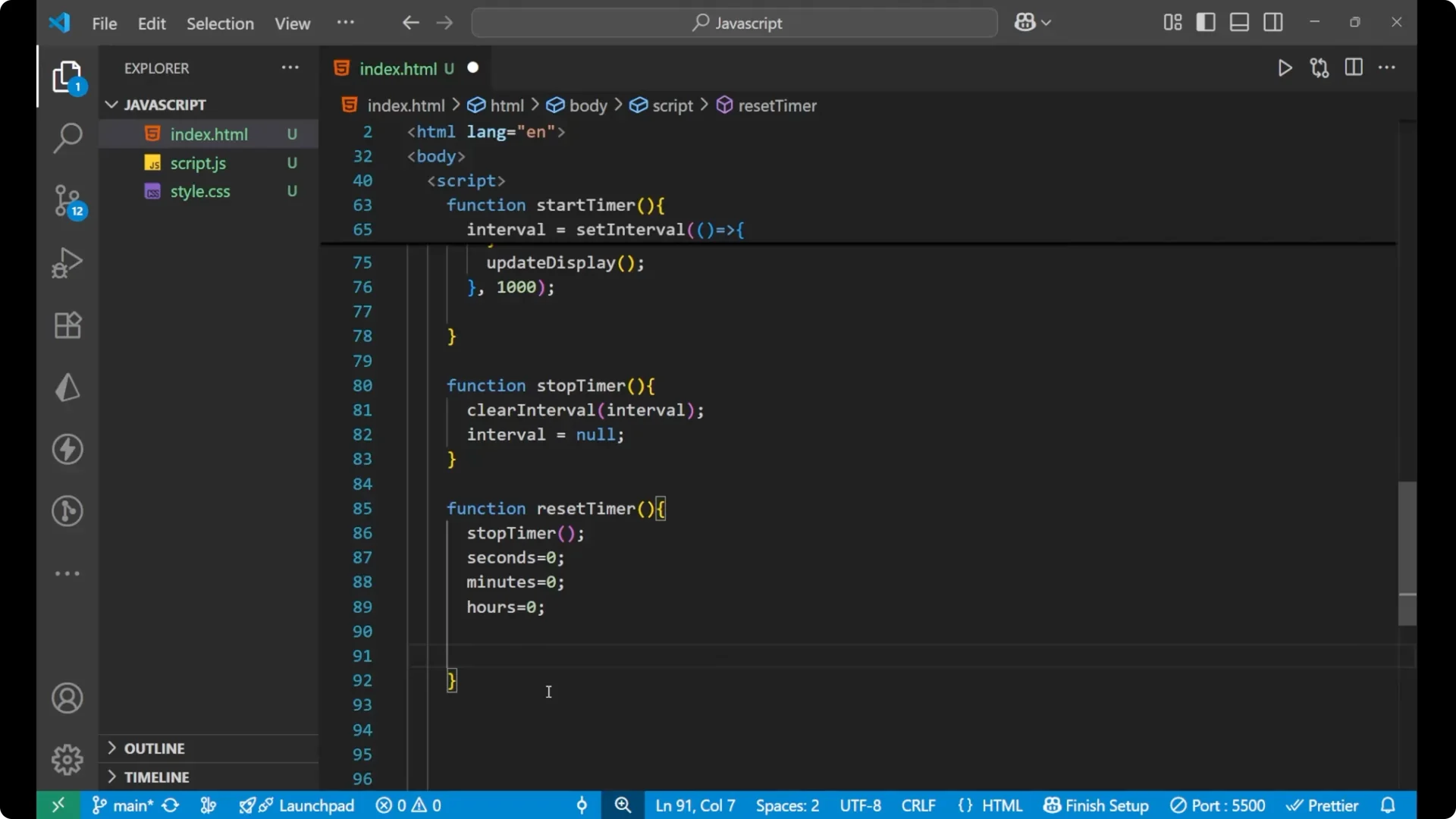

On reset, I first call stopTime to stop the interval. Then I set seconds, minutes, and hours to 0 and update the display.





function resetTime() {
  stopTime();
  seconds = 0;
  minutes = 0;
  hours = 0;
  updateDisplay();
}





Initial render

I call updateDisplay once so the UI starts at 00:00:00.





updateDisplay();





Testing and a Small Fix

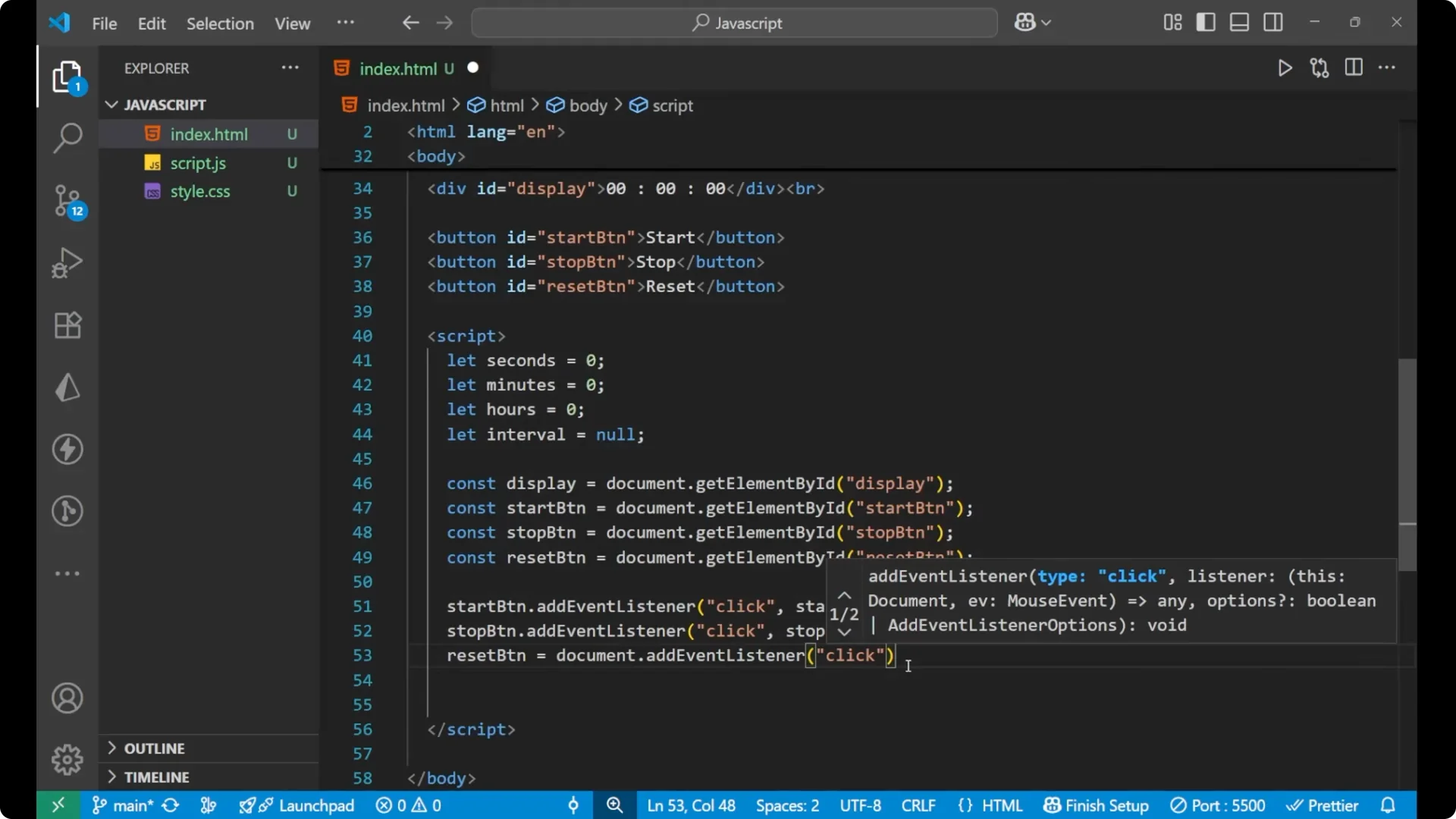

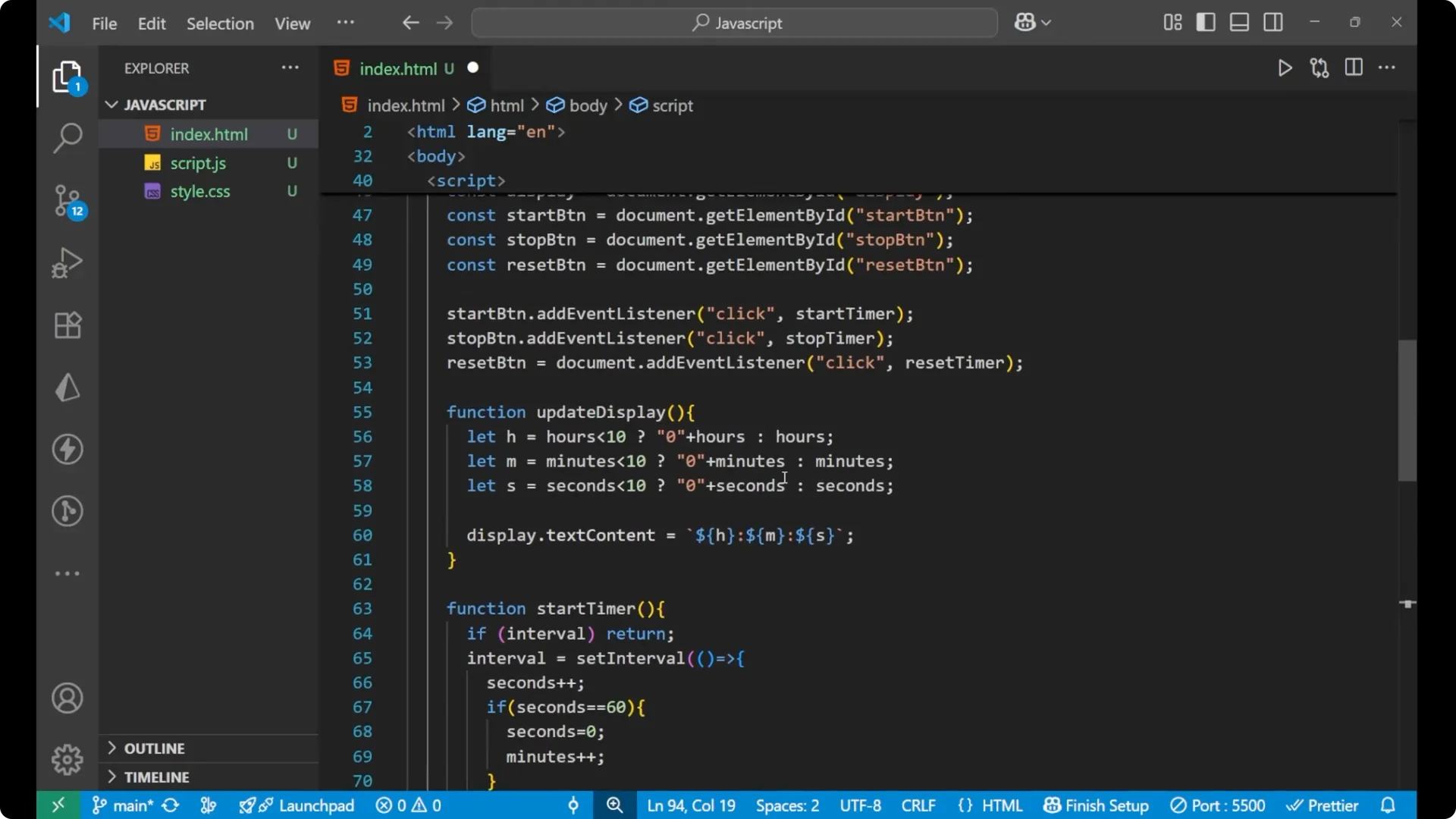

When I tested, the timer was not responding to the reset button. The mistake was attaching the reset logic to a variable instead of adding a click event listener. The fix is to add the event listener properly as shown earlier:

• resetBtn.addEventListener(‘click’, resetTime)

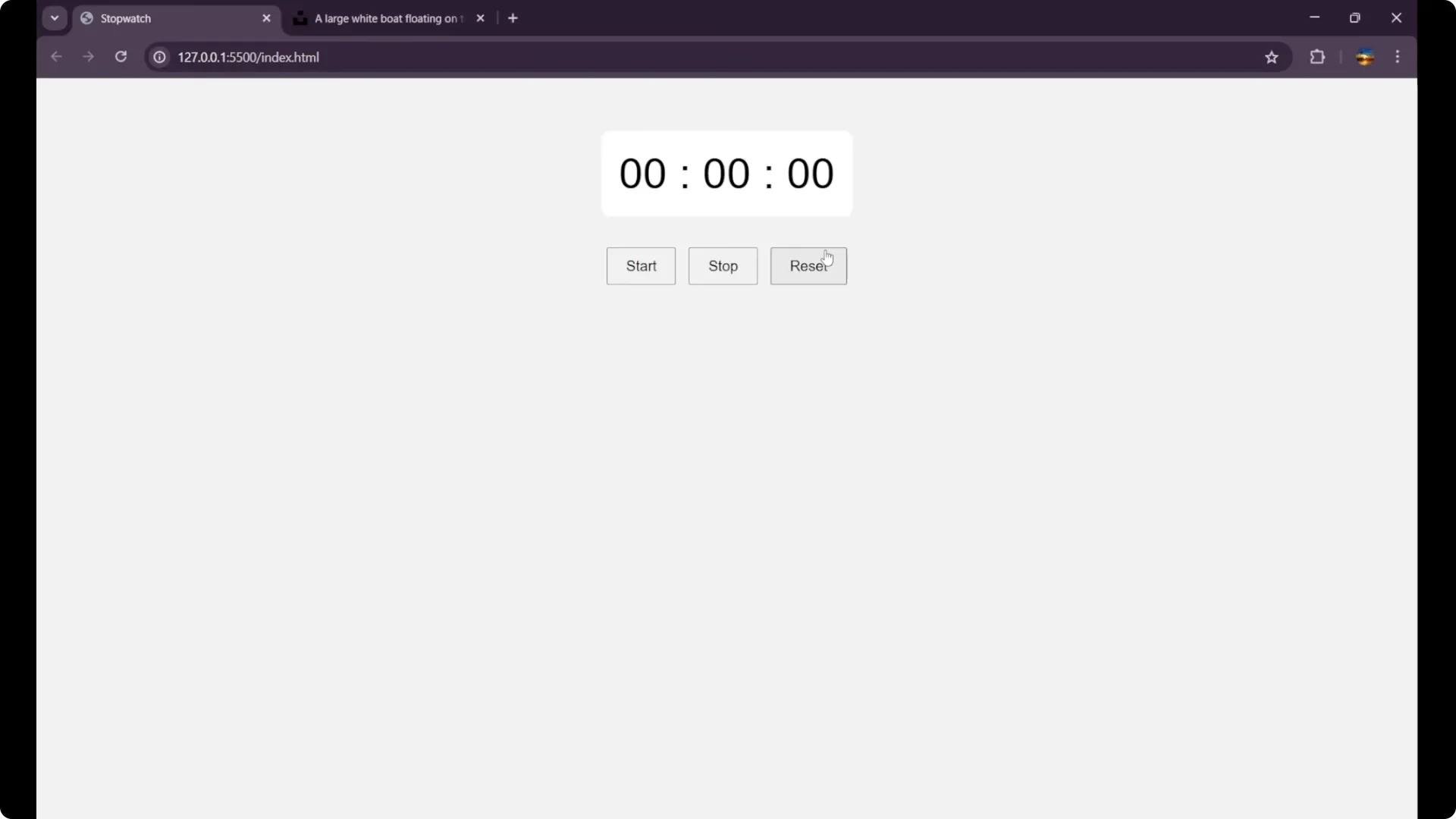

After the fix:

• Start begins the timer and updates every second.
• Stop freezes the timer.
• Reset sets it back to zero and stops the interval.
• Start again resumes from zero.







Final Thoughts

This stopwatch is simple to build with basic DOM methods and a few clear functions. The key points are preventing multiple intervals, rolling over seconds and minutes at 60, and keeping the display updated with leading zeros. I tried my best to explain the logic clearly so you can build it on your own.
